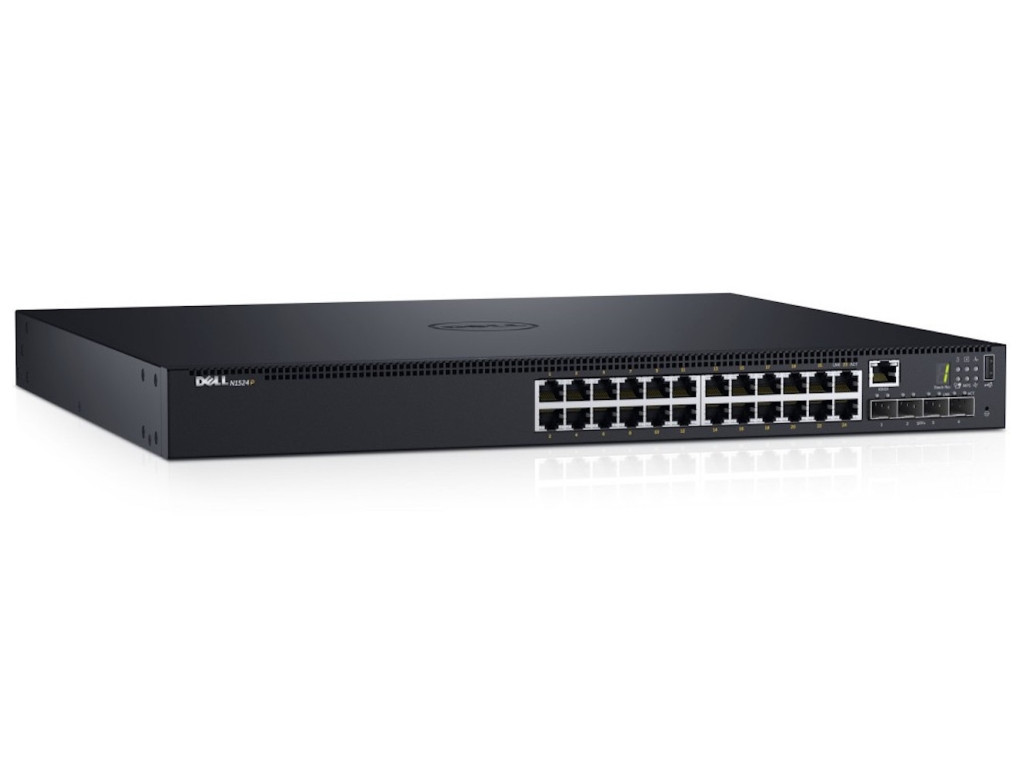

Комутатор Dell Networking N1524P

★★★★★ (0 ревюта)

DELL

_модел DNN1524P

_цена 4230.36 лв.

_{код на продукта} 8792

_{наличност} при доставчик

Добави в количката

Описание на продукта

Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, AC Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

28
Основни портове, тип

24x10/100/1000Base-T
Power Over Ethernet (PoE)

Support IEEE 802.3at PoE plus standard
Uplink портове

4x10GE SFP
Свободни (10GB) слотове

No
Управление

Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.
Stackable

Yes
Fans

Redundant variable speed fans
Захранване

Integrated power supply: 600W AC; Optional external power supply MPS1000 (sold separately)
Routing

Layer 3 RIP
Памет (Flash, RAM)

Flash Memory: 256 MB, RAM: 1 GB
Капацитет за маршрутизиране/превключване, Gbps

128 Gbps
Пропускателна способност, Mpps

128 Mpps
MAC адреси

16000 MAC address table size
VLAN (брой, стандарти)

802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private VLAN Edge support; 128 VLAN routing interfaces; 512 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24
QoS

8 priority queues per port, DiffServ, Flow Based QoS, Port Based QoS
L2 мрежови стандарти

IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae/at, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
L3 мрежови стандарти

Static routing and Routing Information ProtocoL (RIPv1, RIPv2); 128 RIP routing interfaces
IPv6 functionality

General IPv6 protocols are supported
Сигурност

AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support
Размери (Ш, Д, В), mm

440 x 387 x 43
Опция за монтаж

Rackmount
Други

RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive
