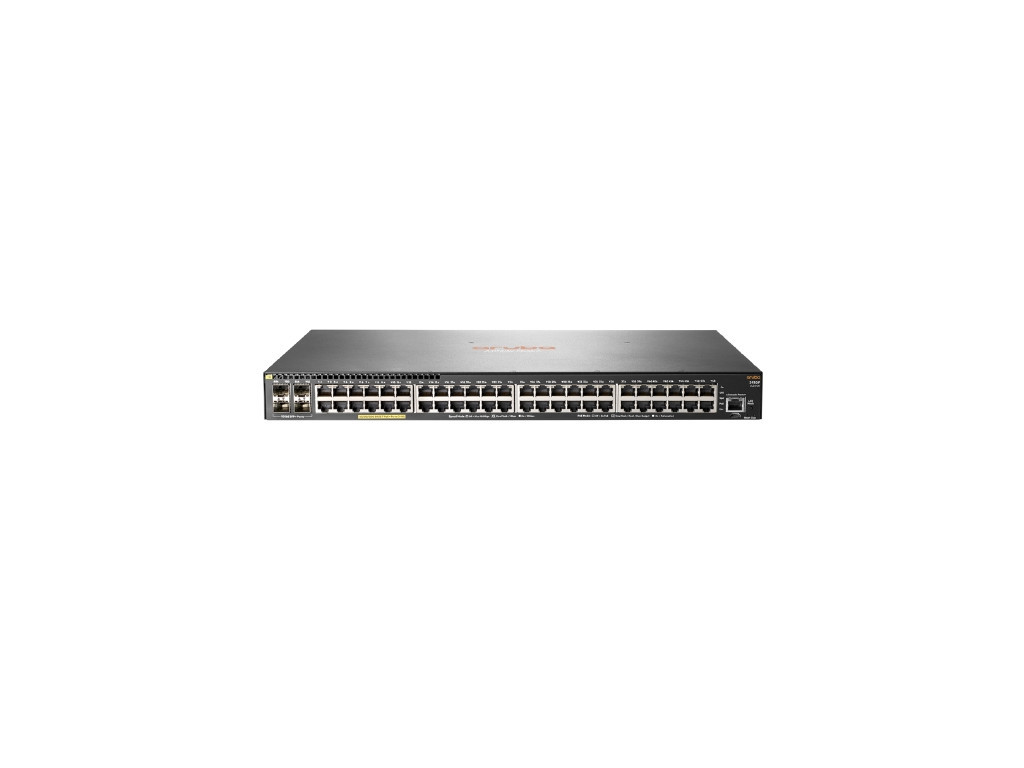

Комутатор Aruba 2930F 48G PoE+ 4SFP+ T Swch

★★★★★ (0 ревюта)

HPE

_модел JL264A

_цена 16184.64 лв.

_{код на продукта} 8929

_{наличност} при доставчик

Добави в количката

Описание на продукта

Aruba 2930F 48G PoE+ 4SFP+ T Swch Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

52
Основни портове, тип

48x10/100/1000Base-T
Power Over Ethernet (PoE)

IEEE 802.3af and IEEE 802.3at; Pre-standard PoE support; PoE power: 370 W PoE+
Uplink портове

4x10GE SFP
Свободни (10GB) слотове

No
Управление

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Stackable

No
Fans

yes
Захранване

Internal
Routing

Layer 3 Advansed
Памет (Flash, RAM)

Flash Memory: 4 GB eMMC; RAM: 1 GB DDR3 SDRAM
Капацитет за маршрутизиране/превключване, Gbps

176 Gbps
Пропускателна способност, Mpps

112 Mpps
MAC адреси

32768 MAC addres table size
VLAN (брой, стандарти)

Supports IEEE 802.1Q (4,094 VLAN IDs) and 2K VLANs simultaneously, IEEE 802.1v protocol VLANs, Rapid Per-VLAN Spanning Tree (RPVST+), GVRP and MVRP, VxLAN, Jumbo packet support
QoS

Traffic prioritization (IEEE 802.1p) - Allows real-time traffic classification into eight priority levels mapped to eight queues; Layer 4 prioritization - Enables prioritization based on TCP/UDP port numbers; Class of Service (CoS); Rate limiting
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1AB, IEEE 802.1AX-2008, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1v, IEEE 802.1X, IEEE 802.1ap
L3 мрежови стандарти

Static IP routing; 256 static and 10000 RIP routes; Routing Information Protocol (RIP) Provides RIPv1, RIPv2, and RIPng routing; Access OSPF - Provide OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN.
IPv6 functionality

IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS, Dual stack (IPv4 and IPv6)
Сигурност

IEEE 802.1X, Web/MAC-based authentication, ACLs, Source-port filtering, RADIUS/TACACS+, Secure shell, SSL, Port security, MAC address lockout, Secure FTP, STP BPDU port protection, DHCP protection, Dynamic ARP protection, STP root guard, Private VLAN
Размери (Ш, Д, В), mm

443 x 304 x 44
Опция за монтаж

Rackmount
Други

1 dual-personality (RJ-45 or USB micro-B) serial console port
