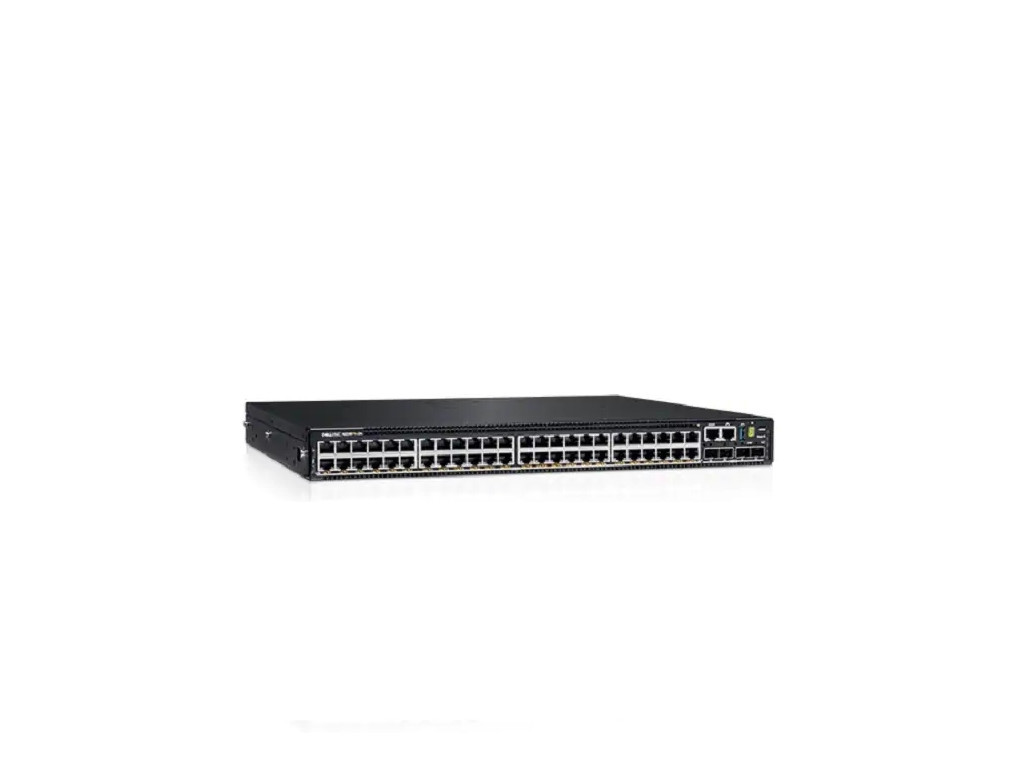

Комутатор Dell EMC PowerSwitch N3248TE-ON

★★★★★ (0 ревюта)
DELL
модел DNN3248TE
цена 12902.6 лв.

код на продукта 8810
гаранция 99 месеца
тегло 10
наличност при доставчик


Описание на продукта

Dell EMC PowerSwitch N3248TE-ON, 48x RJ45 10/100/1000Mb auto-sensing ports, 4x 10G SFP+ ports, 2x 100G QSFP28 ports, 1x 550W AC PSU, IO/PS Виж характеристиките

    • ✓ Модел: Dell EMC PowerSwitch N3248TE-ON, 48x RJ45 10/100/1000Mb auto-sensing ports, 4x 10G SFP+ ports, 2x 100G QSFP28 ports, 1x 550W AC PSU, IO/PS
    • ✓ За: за бизнеса
    • ✓ Група: DELL мрежови продукти
    • ✓ Подгрупа: Switches
    • ✓ Тегло: 10
    • -

  • Суич, тип
    Fixed Port
  • Общ брой портове
    54
  • Основни портове, тип
    48x 10/100/1000Base-T
  • Power Over Ethernet (PoE)
    -
  • Uplink портове
    4x 10G SFP+ ports
  • Свободни (10GB) слотове
    -
  • Управление
    CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
  • Stackable
    2x 100G QSFP28
  • Fans
    Redundant variable speed fans
  • Захранване
    1x 550W AC PSU
  • Routing
    Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
  • Памет (Flash, RAM)
    4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
  • Капацитет за маршрутизиране/превключване, Gbps
    576 Gbps
  • Пропускателна способност, Mpps
    800 Mpps
  • MAC адреси
    32K
  • VLAN (брой, стандарти)
    Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
  • QoS
    DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
  • L2 мрежови стандарти
    802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
  • L3 мрежови стандарти
    RIP, OSPF, VRRP, MIB
  • IPv6 functionality
    Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
  • Сигурност
    RADIUS, TACACS+, 802.1x
  • Размери (Ш, Д, В), mm
    434 x 400 x 43.5 mm
  • Опция за монтаж
    Rackmount
  • Други
    1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
