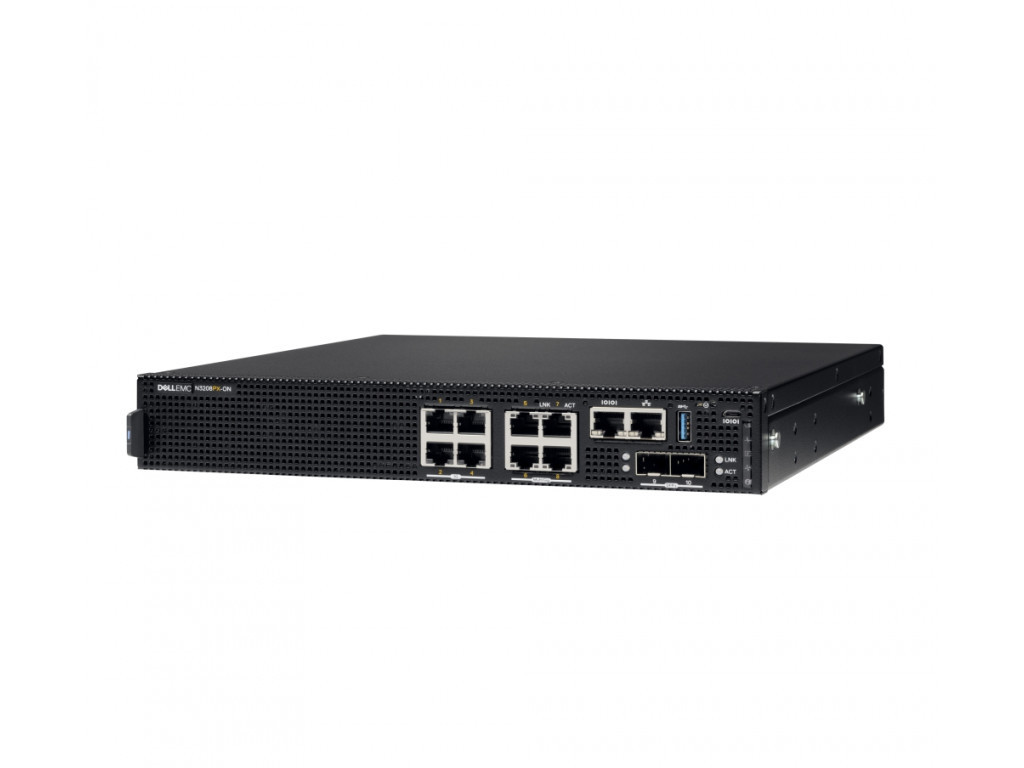

Комутатор Dell EMC PowerSwitch N3208PX-ON

★★★★★ (0 ревюта)

DELL

_модел DNN3208PX

_цена 7520.64 лв.

_{код на продукта} 8803

_{наличност} при доставчик

Добави в количката

Описание на продукта

Dell EMC PowerSwitch N3208PX-ON, 4x RJ45 10M/100M/1G/2.5G/5G 802.3bt (up to 90W) PoE autosensing ports, 4x 10M/100M/1000Mb 802.3bt (up to 90W) PoE autosensing ports,, 2x 10G SFP+ ports, 1x 320W AC PSU included Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

8
Основни портове, тип

4x RJ45 10M/100M/1G/2.5G/5G 802.3bt (up to 90W) PoE autosensing ports + 4x 10M/100M/1000Mb 802.3bt (up to 90W) PoE autosensing ports
Power Over Ethernet (PoE)

PoE
Uplink портове

2x 10G SFP+ ports
Свободни (10GB) слотове

-
Управление

Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell EMC OpenManage Network Manager), Telnet or serial connection.
Stackable

No
Fans

Redundant variable speed fans; Air flow: I/O to power supply
Захранване

1x 320W AC PSU included
Routing

Line-rate Layer 3 routing; Static routes: 1024 (IPv4)/1024 (IPv6), Dynamic routes: 8158 (IPv4)/4096 (IPv6), OSPF routing interfaces: 8158, RIP routing interfaces: 512, ECMP next hops per route: 16, ECMP groups: 1024
Памет (Flash, RAM)

4 MB Buffer memory
Капацитет за маршрутизиране/превключване, Gbps

88 Gbps
Пропускателна способност, Mpps

122 Mpps
MAC адреси

32K
VLAN (брой, стандарти)

VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24; IEEE compliance: Voice VLAN, 802.1Q, 802.1v, 802.1X
QoS

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 мрежови стандарти

IEEE 802.3bt
L3 мрежови стандарти

RIPv1, RIPv2 MIB Extension, OSPF DB overflow, OSPF MIB, RIP-2 MD5 Auth, OSPFv2, VRRP, Opaque, Policy Based Routing, RIPv2, OSPFv3, VRRP MIB, NSSA, OSPF Stub Router Advert, Graceful Restart, VRRP, BGP, OSPFv3
IPv6 functionality

BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Сигурност

AAA authorization, TACACS+ accounting and RADIUS
Размери (Ш, Д, В), mm

279.4 x 312 x 43.5 mm
Опция за монтаж

Rackmount (1U)
