Комутатор Cisco Catalyst 2960-XR 24 GigE

★★★★★ (0 ревюта)
CISCO
модел WS-C2960XR-24TD-I
цена 14778.29 лв.

код на продукта 9073
гаранция 99 месеца
тегло 6.8
наличност със запитване

Описание на продукта

Cisco Catalyst 2960-XR 24 GigE, 2 x 10G SFP+, IP Lite Виж характеристиките

    • ✓ Модел: Cisco Catalyst 2960-XR 24 GigE, 2 x 10G SFP+, IP Lite
    • ✓ За: за бизнеса
    • ✓ Група: Cisco Enterprise and Service Providers - Borderless Networks
    • ✓ Подгрупа: Switches
    • ✓ Тегло: 6.8
    • -

  • Суич, тип
    Fixed Port
  • Общ брой портове
    26
  • Основни портове, тип
    24x10/100/1000Base-T
  • Power Over Ethernet (PoE)
    No
  • Uplink портове
    2x10GE SFP
  • Свободни (10GB) слотове
    No
  • Управление
    CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP
  • Stackable
    FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
  • Fans
    yes
  • Захранване

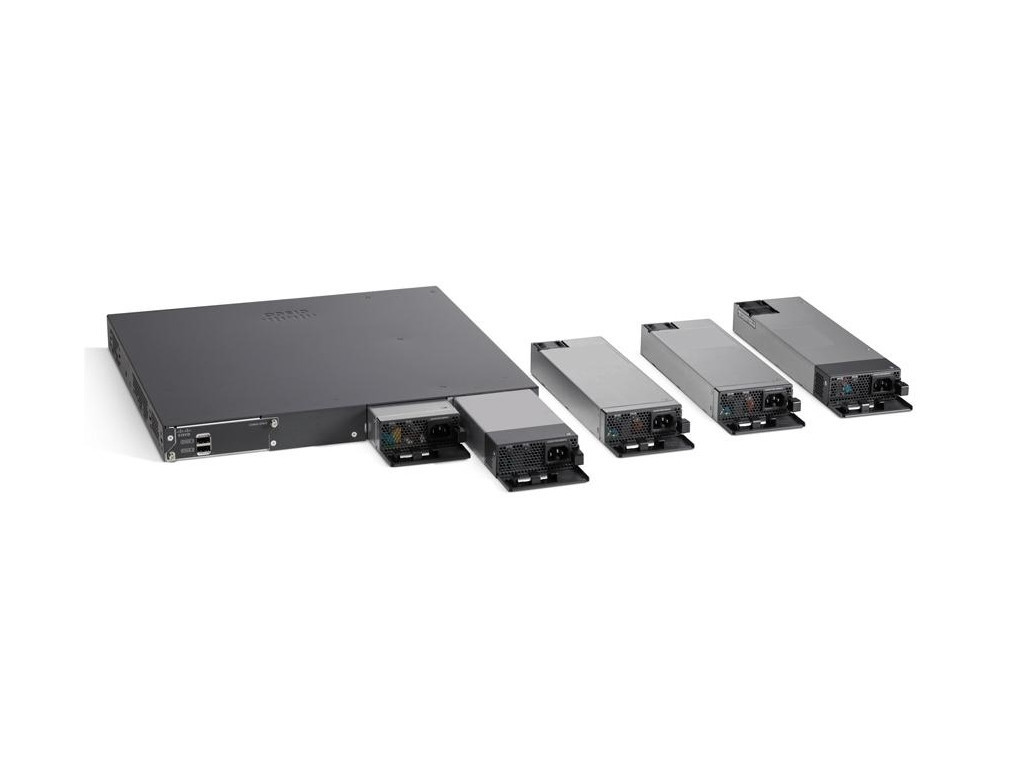

    Power resiliency with optional dual field-replaceable power supplies. These power supplies have in-built fans to provide cooling.
  • Routing
    Layer 3 Advanced
  • Памет (Flash, RAM)
    Flash memory: 128 MB; RAM: 512 MB DRAM
  • Капацитет за маршрутизиране/превключване, Gbps
    216 Gbps
  • Пропускателна способност, Mpps
    95.2 Mpps
  • MAC адреси
    -
  • VLAN (брой, стандарти)
    Maximum active VLANs: 1023; IEEE 802.1Q VLAN
  • QoS
    Up to eight egress queues per port (four on the 2960-X or when stacking the 2960-XR) and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic; SRR; WTD; 802.1p class of service; DSCP; Rate limiting
  • L2 мрежови стандарти
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1ae, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
  • L3 мрежови стандарти
    IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng); Advanced IP unicast routing protocols (OSPF for Routed Access); Equal-cost routing; Policy-based routing (PBR), HSRP, VRRP, PIM
  • IPv6 functionality
    IPv6 Ready Logo, IPv6 Aggregatable Addrs, IPv6 Neighbor Discovery, IPv6 Autoconfiguration, ICMP IPv6
  • Сигурност
    Cisco TrustSec, 802.1X, Cisco Threat Defense, Private VLANs, RPF, ACLs, SSH, SPAN, TACACS+ and RADIUS authentication, MAC Address Notification, Multilevel security on console access, BPDU guard, STRG, IGMP filtering, Dynamic VLAN assignment
  • Размери (Ш, Д, В), mm
    445 x 408 x 45
  • Опция за монтаж
    Rackmount
  • Други
    System Software: IP Lite
