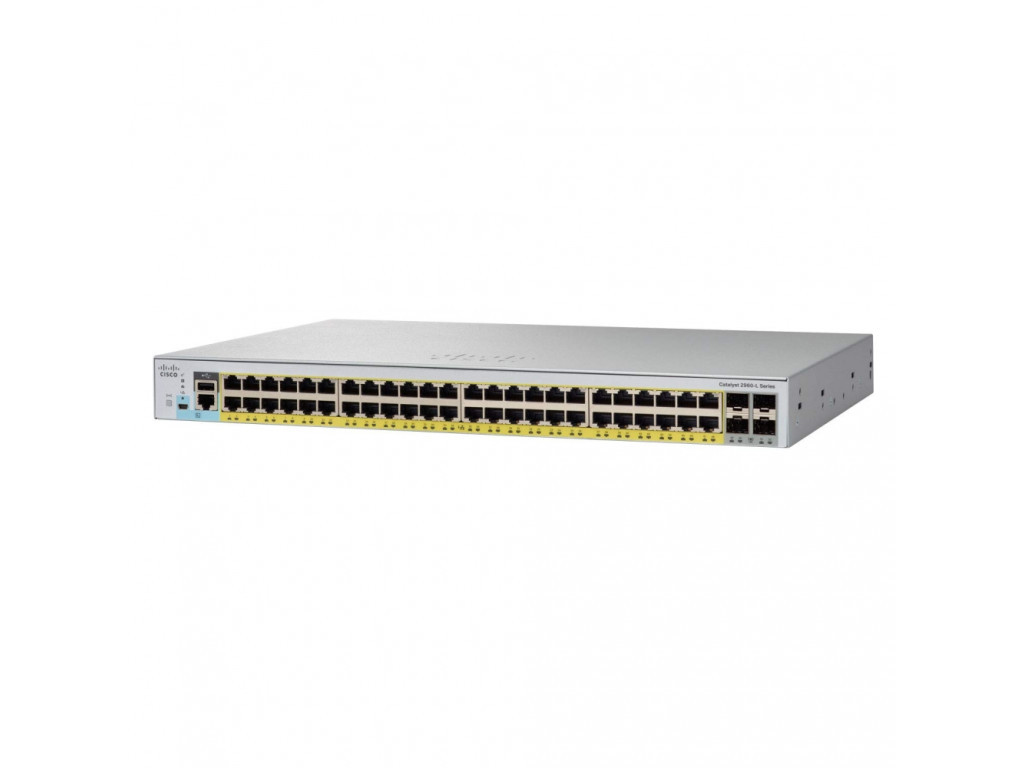

Комутатор Cisco Catalyst 2960L 9156_4.jpg

Комутатор Cisco Catalyst 2960L 9156_5.jpg

Комутатор Cisco Catalyst 2960L 9156_6.jpg

Комутатор Cisco Catalyst 2960L 9156_7.jpg

Комутатор Cisco Catalyst 2960L

★★★★★ (0 ревюта)

CISCO

_модел WS-C2960L-SM-48TQ

_цена 6700.49 лв.

_{код на продукта} 9156

_{наличност} със запитване

Описание на продукта

Cisco Catalyst 2960L,Smart Managed, 48p GigE, 4x10G SFP+, LAN Lite Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

52
Основни портове, тип

48x10/100/1000Base-T
Power Over Ethernet (PoE)

-
Uplink портове

4x 10G SFP+
Свободни (10GB) слотове

No
Управление

SNMP, web UI, Bluetooth for over-the-air access, Virtual Stacking, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), RMON, TCP
Stackable

No
Fans

Fanless design
Захранване

Single fixed power supply, 110 to 220V AC
Routing

Layer 2 Only
Памет (Flash, RAM)

Flash memory: 256 MB; RAM: 512 MB DRAM
Капацитет за маршрутизиране/превключване, Gbps

104 Gbps
Пропускателна способност, Mpps

77.38 Mpps
MAC адреси

16000 MAC address table size
VLAN (брой, стандарти)

Maximum active VLANs: 256; VLAN IDs available: 4094; IEEE 802.1Q VLAN
QoS

Up to eight egress queues and two thresholds per port; Ingress policing; DSCP; Traffic Classification; Trust Boundary; Auto-QoS; Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD); 802.1p Class of Service (CoS)
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
L3 мрежови стандарти

RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery, RFC 792 - ICMP, RFC 791 - IP, RFC 793 - TCP, RFC 768 - UDP
IPv6 functionality

IPv6 unicast direct routes: 414; IPv6 unicast indirect routes: 128; IPv6 static routes: 16; IPv6 multicast groups: 1024; IPv6 security ACEs: 256
Сигурност

Comprehensive 802.1X; 802.1x support with NEAT; Disable per-VLAN MAC learning; Multidomain/AAA command authorization; ACLS; Port-based ACLs; SSH, Kerberos, and SNMPv3; SPAN; TACACS+/ RADIUS/MAC authentication; MAC address/Web notification; BPDU and etc.
Размери (Ш, Д, В), mm

445 x 240 x 44
Опция за монтаж

Desktop/Rackmount
Други

1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console
