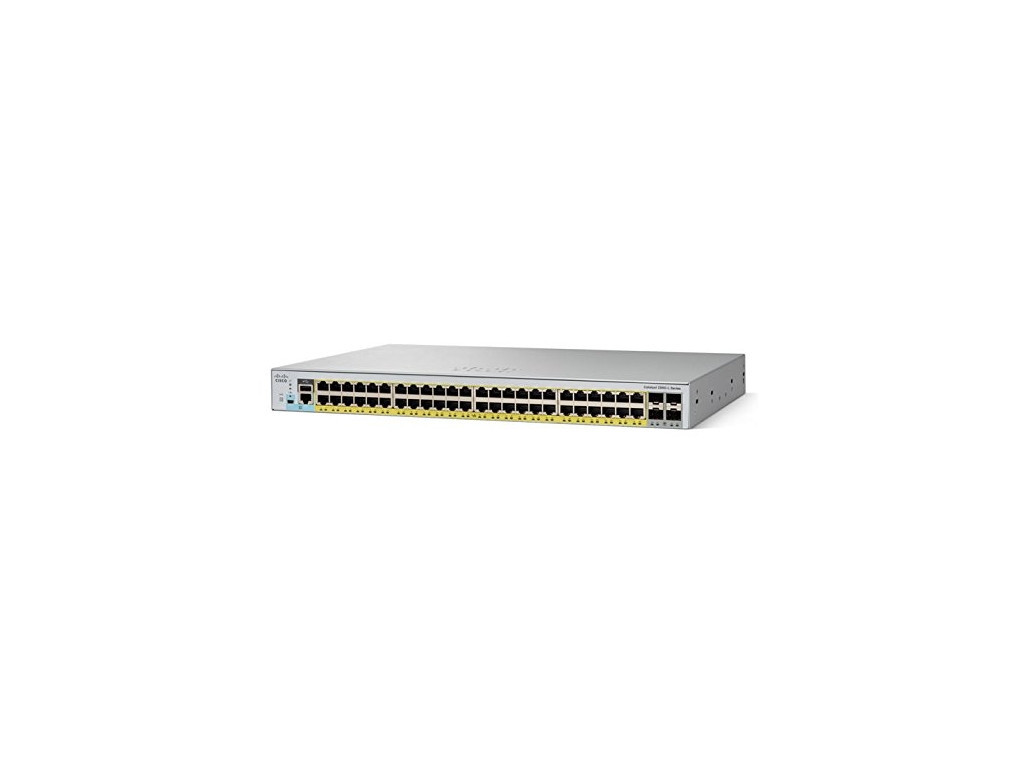

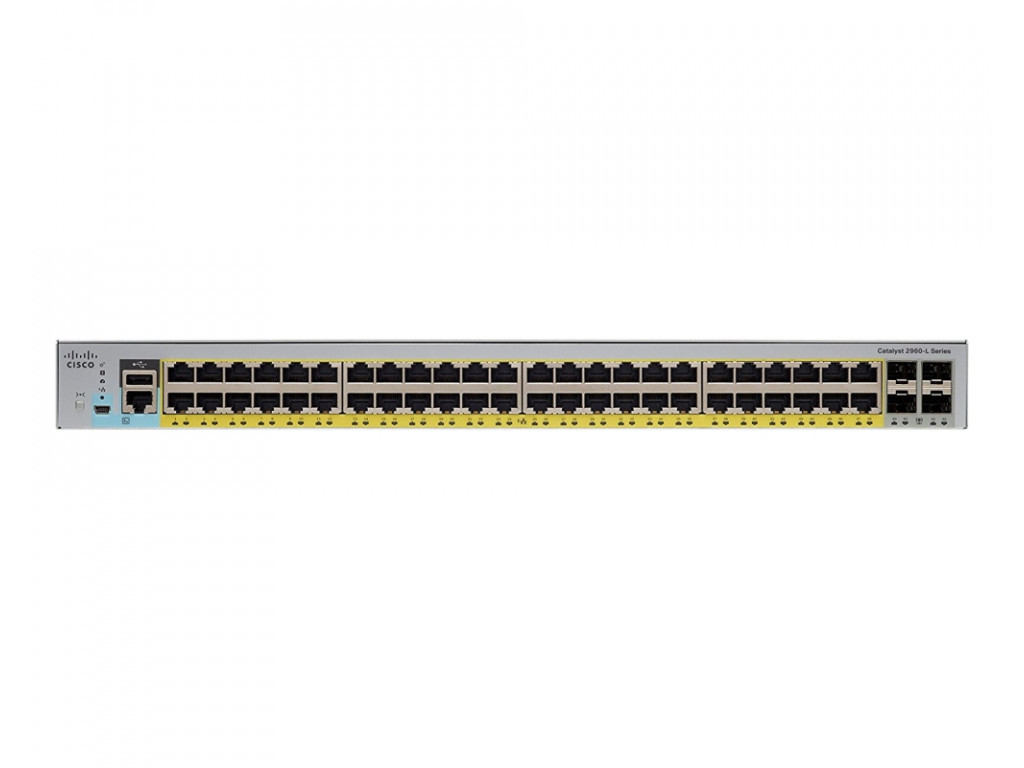

Комутатор Cisco Catalyst 2960L 48 port GigE with PoE

★★★★★ (0 ревюта)

CISCO

_модел WS-C2960L-48PS-LL

_цена 8021.83 лв.

_{код на продукта} 9086

_{наличност} със запитване

Описание на продукта

Cisco Catalyst 2960L 48 port GigE with PoE, 4 x 1G SFP, LAN Lite Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

52
Основни портове, тип

48x10/100/1000Base-T
Power Over Ethernet (PoE)

Support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port). Available PoE Power: 370W
Uplink портове

4xSFP
Свободни (10GB) слотове

No
Управление

CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP
Stackable

No
Fans

yes
Захранване

Single fixed power supply, 110 to 220V AC
Routing

Layer 2 Only
Памет (Flash, RAM)

Flash memory: 256 MB; RAM: 512 MB DRAM
Капацитет за маршрутизиране/превключване, Gbps

104 Gbps
Пропускателна способност, Mpps

77.38 Mpps
MAC адреси

8000 MAC address table size
VLAN (брой, стандарти)

Maximum active VLANs: 64; VLAN IDs available: 4094; IEEE 802.1Q VLAN
QoS

Up to four egress queues and two thresholds per port supporting bandwidth control, shaping, and priority queuing so that the high priority packets are serviced ahead of other traffic; WRR scheduling and WTD congestion avoidance; 802.1p class of service
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
L3 мрежови стандарти

-
IPv6 functionality

IPv6 Ready Logo
Сигурност

Comprehensive 802.1x, Multidomain Authentication, Access Control Lists (ACLs), SSH, Kerberos, SNMPv3, Switched Port Analyzer (SPAN), TACACS+ and RADIUS authentication, MAC address notification, Multilevel security on console access, BPDU guard, STRG
Размери (Ш, Д, В), mm

445 x 292 x 44
Опция за монтаж

Desktop/Rackmount
Други

1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console
