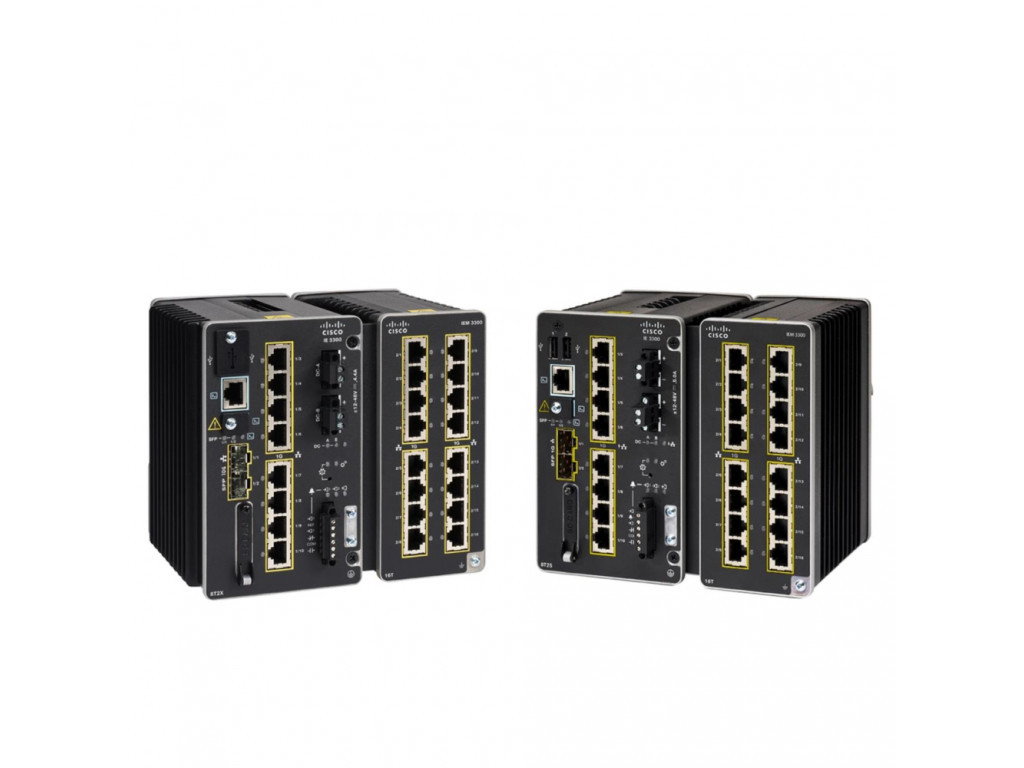

Комутатор Cisco Catalyst IE3300 with 8 GE PoE/PoE+ and 2 GE SFP

★★★★★ (0 ревюта)

CISCO

_модел IE-3300-8P2S-A

_цена 18792.04 лв.

_{код на продукта} 9226

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco Catalyst IE3300 with 8 GE PoE/PoE+ and 2 GE SFP, Modular, NA Виж характеристиките

Характеристики

Суич, тип

Modular
Общ брой портове

10
Основни портове, тип

8x GE PoE+ copper ports (10/100/1000 RJ45 Copper ports)
Power Over Ethernet (PoE)

PoE+; PoE / PoE (+) budget: 240W (base), 360W (with module); IEEE 802.3at
Uplink портове

2x GE SFP ports (100/1000 SFP ports)
Свободни (10GB) слотове

Single or double wide expansion modules add 2 or 3 inches to the system width
Управление

WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
Stackable

-
Fans

Fanless, convection-cooled
Захранване

Redundant DC input voltage: 9.6 to 60VDC, Maximum Input current: 3.8A, Power consumption: 23W
Routing

Layer 3 routing: Inter-VLAN routing, Static routing
Памет (Flash, RAM)

DRAM - 2 GB, Flash [User Accessible] - 1.5 GB, Optional Removable storage: USB, SD card (capacity: up to 4 GB)
Капацитет за маршрутизиране/превключване, Gbps

Line rate for all ports and all packet sizes
MAC адреси

8K
VLAN (брой, стандарти)

voice VLAN, guest VLAN, VLAN: 256; IEEE 802.1q VLAN
QoS

Ingress policing, rate limit, egress queuing and shaping, auto QoS
Сигурност

Port security, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard, MAC authentication bypass, storm control, SCP, SSH, SNMPv3, TACACS+, RADIUS, MAC address notific., BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099, FNF, MACsec 256
Мрежови стандарти

IEEE 802.1d, 802.1p, 802.1s, 802.1w, 802.1x, 802.1ab, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEEE 802.3af, IEEE 802.3at
Протоколи за индустриална автоматизация

CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Работна температура

-40°C to +70°C (40 LFM vented enclosure), -40°C to +60°C (sealed enclosure), -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure), +85°C (type tested for 16 hours)
Размери (Ш, Д, В), mm

91 x 135 x 152 mm
Опция за монтаж

DIN rail
Други

Network Advantage (IP routing Protocols - OSPF, BGP, RIP, ISIS, EIGRP, PBR, VRRP, HSRP; Virtualization - Vrf-lite, IP Multicast), Console ports: 1 RS-232 (via RJ-45), 1 USB Mini Type B; Layer 2 switching
