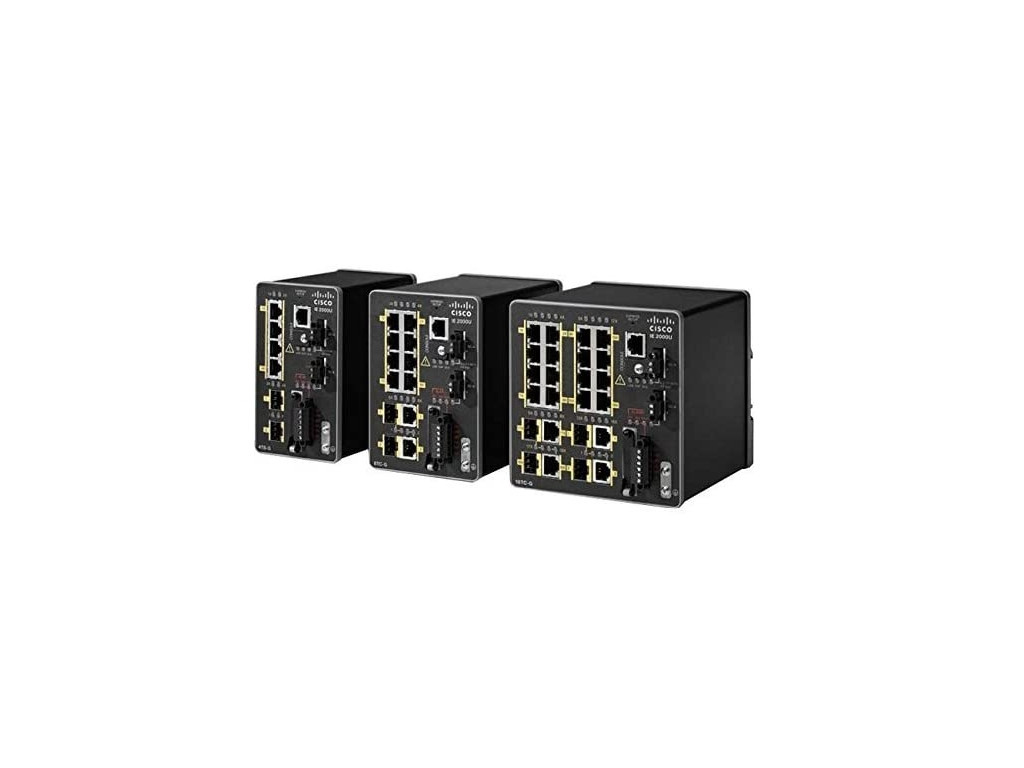

Комутатор Cisco IE2000U with 16FE Copper ports and 2GE Combo (Lan Base License)

★★★★★ (0 ревюта)

CISCO

_модел IE-2000U-16TC-GP

_цена 8068.48 лв.

_{код на продукта} 9220

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco IE2000U with 16FE Copper ports and 2GE Combo (Lan Base License) Виж характеристиките

Характеристики

Суич, тип

Fixed port
Общ брой портове

18
Основни портове, тип

16x FE copper ports (RJ-45 connectors)
Power Over Ethernet (PoE)

IEEE 802.3af, IEEE 802.3at
Uplink портове

2x GE Combo ports (SFP or RJ45)
Свободни (10GB) слотове

-
Управление

SNMP v2 and 3, IGMP multicast groups: 1000, SDM, CFM
Stackable

-
Fans

Convection cooled
Захранване

Redundant DC input voltage with operating range: 12-48 VDC Nominal, 9.6-60 VDC Maximum; Maximum DC input current: 0.5A at 48 VDC, 1A at 24 VDC; Power Consumption: 13-20 W
Routing

-
Памет (Flash, RAM)

Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 1 GB removable SD flash memory card (CG swap drive) – (128MB space available)
Капацитет за маршрутизиране/превключване, Gbps

Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps

Max. 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси

Unicast MAC addresses: 8000
VLAN (брой, стандарти)

Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN, Protected port/private VLAN
QoS

Advanced QoS capabilities to support mission-critical substation applications such as SCADA and IEC 61850 Generic Object Oriented Substation Events (GOOSE) messaging
Сигурност

802.1x, Dynamic ARP Inspection, DHCP Snooping, ACL, Port security, UNI/ENI, Spanning Tree Protocol security, Storm control, Secure connectivity: SSH/SSL/SCP, RADIUS/TACACS+, SNMPv3 crypto, OBFL
Мрежови стандарти

IEEE: 802.1s, 802.1w, 802.1x, 802.3ad, 802.3ah, 802.1ag, 802.3x full duplex, 802.1D Spanning Tree Protocol, 802.1p CoS, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEC-62439-3 PRP, IPv6: MLD Snooping v1/2, SNMP v1, 2, and 3
Протоколи за индустриална автоматизация

IEC-61850-3, IEEE 1613, IEEE 1588
Работна температура

-40C to +75C
Размери (Ш, Д, В), mm

127 x 134 x 130 mm
Опция за монтаж

DIN rail
Други

Lan Base License, Parallel Redundancy Protocol (PRP)
