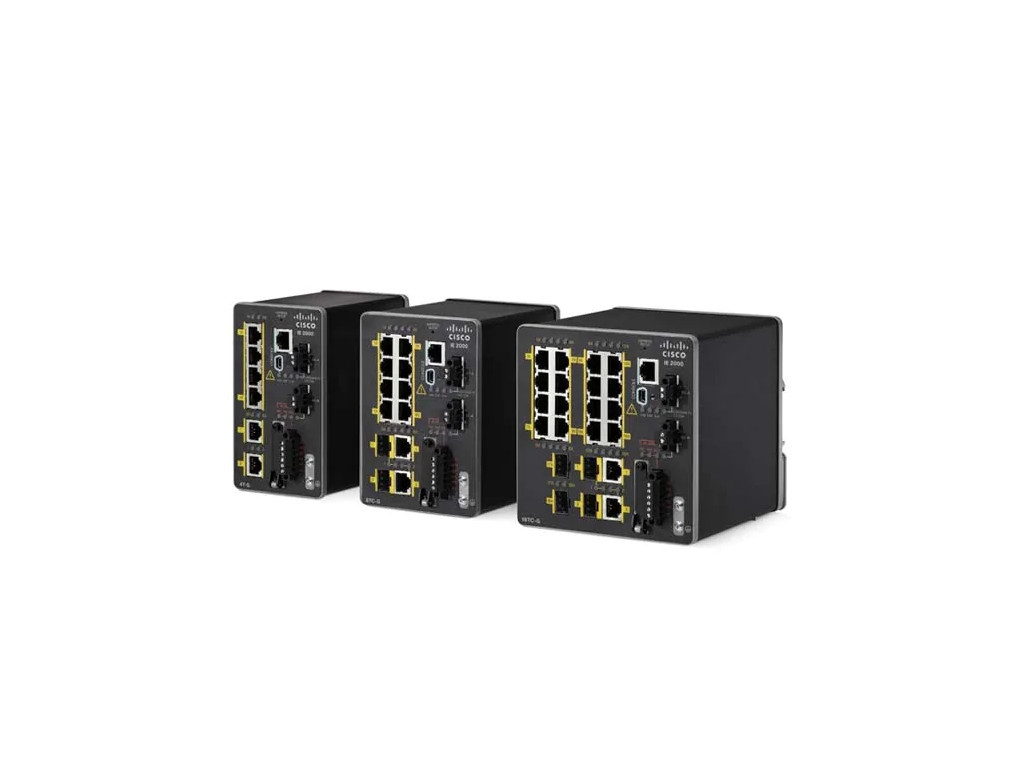

Комутатор Cisco IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Lan Lite License)

★★★★★ (0 ревюта)

CISCO

_модел IE-2000-16PTC-G-L

_цена 6887.84 лв.

_{код на продукта} 9208

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Lan Lite License) Виж характеристиките

Характеристики

Суич, тип

Fixed port
Общ брой портове

18
Основни портове, тип

16x FE (10/100/1000 BASE-T copper ports (4x PoE+) (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)

4x PoE+; PoE (IEEE 802.af) and PoE+ (802.3at)
Uplink портове

2x GE Combo ports (SFP or RJ45)
Свободни (10GB) слотове

-
Управление

Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Stackable

-
Fans

-
Захранване

External Dual-input DC power supply, Power consumption: 21-30 W (16-port base switch) and 4 PoE/PoE+ power requirement
Routing

Layer 3 routing: IPv4 and IPv6 (IPv4 routing: 3500 routes, IPv6 routing: 1750 routes), IPv4 static routing, IPv6 routing: IPv6 host support, HTTP over IPv6, SNMP over IPv6
Памет (Flash, RAM)

Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps

Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps

5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси

Unicast MAC addresses: 8000
VLAN (брой, стандарти)

Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN
Сигурност

802.1x, port security, SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Мрежови стандарти

IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация

EtherNet/IP, Profinet v2
Работна температура

-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm

127 x 134 x 130 mm
Опция за монтаж

DIN rail
Други

Software license - LAN Lite; Type of possible upgrade: LAN Lite to LAN Base Cisco IOS; Mini-USB connector; Multicast: IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier, Layer 2 switching
