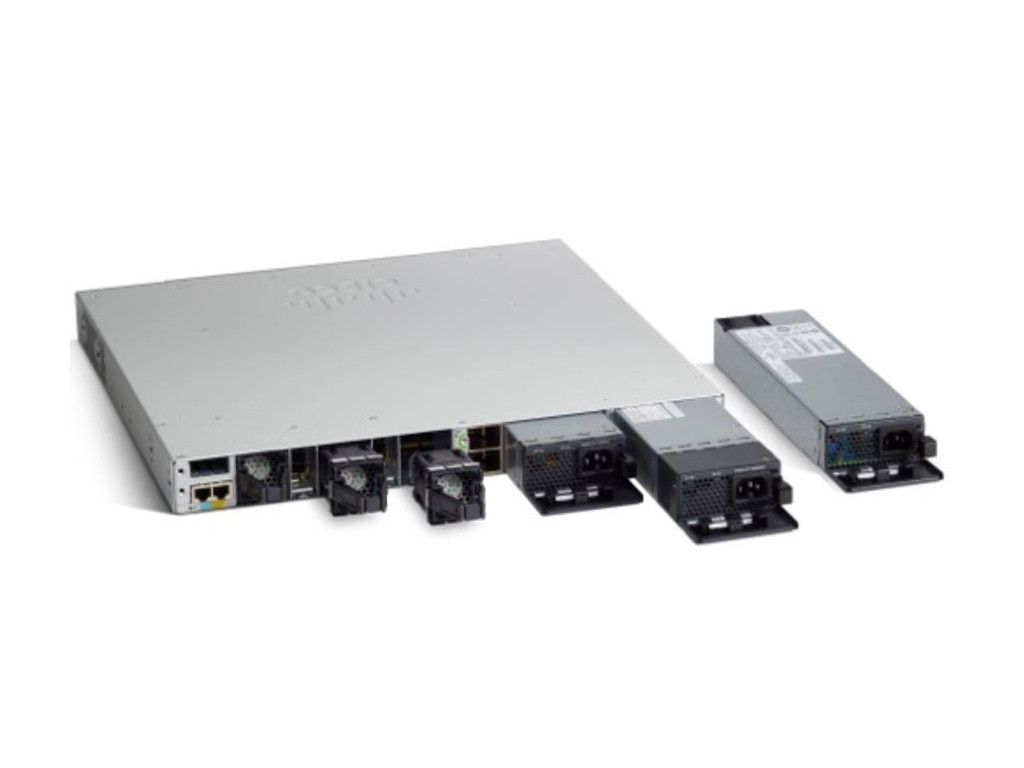

Комутатор Cisco Catalyst 9300 48-port UPOE

★★★★★ (0 ревюта)

CISCO

_модел C9300-48U-A

_цена 19394.72 лв.

_{код на продукта} 9121

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco Catalyst 9300 48-port UPOE, Network Advantage Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

48
Основни портове, тип

48x10/100/1000Base-T
Power Over Ethernet (PoE)

IEEE 802.3at PoE+ Standard. Available PoE Power: 822W, Cisco UPOE extends the IEEE PoE+ standard to double the power per port to 60 watts.
Uplink портове
Свободни (10GB) слотове

1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
Управление

SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable

Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
Fans

Three field-replaceable fans
Захранване

Dual redundant power supplies, Default power supply: PWR-C1-1100WAC
Routing

Layer 3 Advanced
Памет (Flash, RAM)

Flash memory: 16 GB; RAM: 8 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps

256 Gbps
Пропускателна способност, Mpps

190.48 Mpps
MAC адреси

32000 MAC address table size
VLAN (брой, стандарти)

VLAN IDs: 4000; IEEE 802.1Q VLAN
QoS

Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
L3 мрежови стандарти

Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4
IPv6 functionality

IPv6 routing; IPv6 addressing; Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration; IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Сигурност

Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
Размери (Ш, Д, В), mm

445 x 445 x 44
Опция за монтаж

Rackmount
Други

Задължителен е минимум 3-годишен лиценз DNA Advantage.
