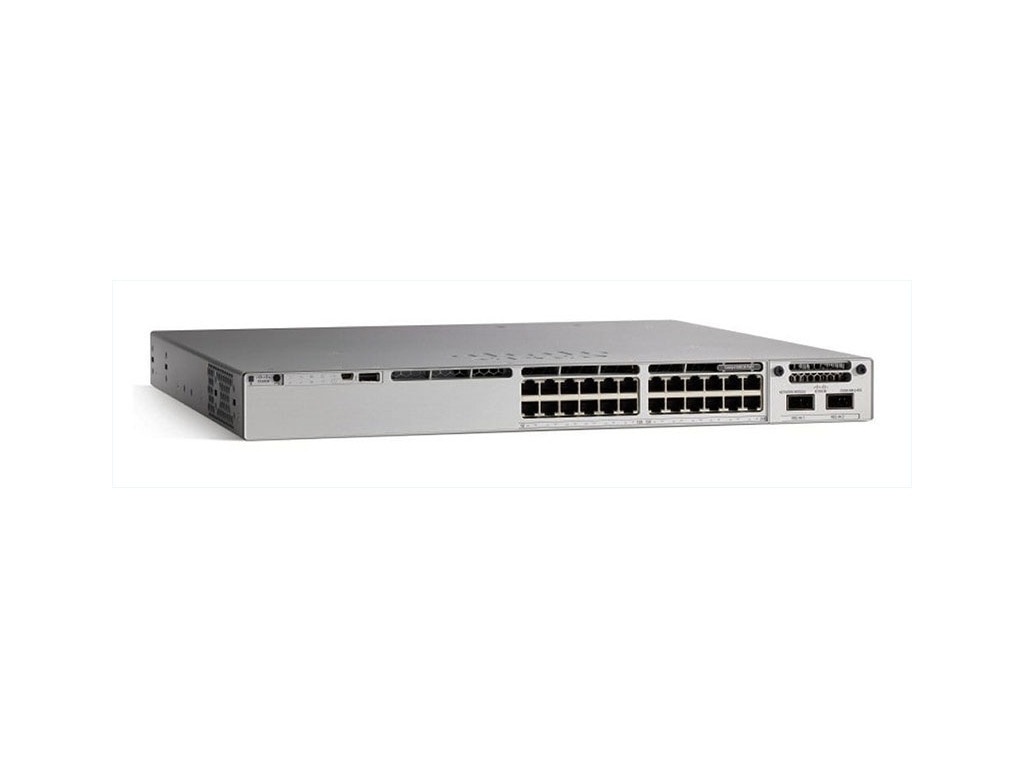

Комутатор Cisco Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks

★★★★★ (0 ревюта)

CISCO

_модел C9300L-24T-4X-E

_цена 7288.79 лв.

_{код на продукта} 24194

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Essentials Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

28
Основни портове, тип

24x10/100/1000Base-T
Power Over Ethernet (PoE)

No
Uplink портове

fixed 4x10G/1G SFP+ uplinks
Свободни (10GB) слотове

No
Управление

SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable

Stacking support: StackWise-320; 320 Gbps; Optional Stacking hardware: C9300L-STACK-KIT; Number of members: 8; Supported stack members: Other C9300L SKUs with same license level
Fans

three field-replaceable fans and support (N+1) redundancy
Захранване

Dual redundant power supplies, Default primary AC power supply: PWR-C1-350WAC-P
Routing

Layer 3 Advanced
Памет (Flash, RAM)

Flash memory: 16 GB; 8 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps

56 Gbps; Switching capacity with stacking: 376 Gbps
Пропускателна способност, Mpps

41.66 Mpps; Forwarding rate with stacking: 279.76 Mpps
MAC адреси

32000 MAC address
VLAN (брой, стандарти)

VLAN IDs: 4094; IEEE 802.1Q VLAN
QoS

Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x
L3 мрежови стандарти

IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
IPv6 functionality

IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting
Сигурност

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Размери (Ш, Д, В), mm

44.5 x 44.9 x 4.4
Опция за монтаж

Rackmount
Други

Задължителен е минимум 3-годишен лиценз DNA Essentials.
